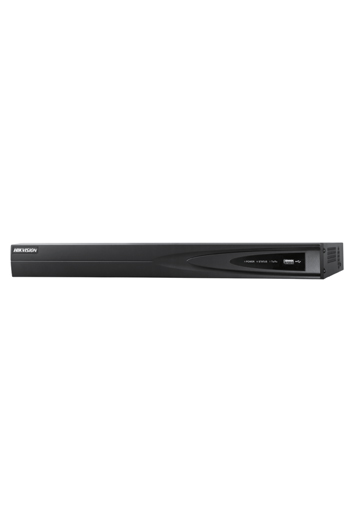

Embedded Plug & Play NVR
DS-7604/08/16NI-E1/4P(-E2/8P)/A
- Key features
- Main Features
- Rear Panel
- Specifications
Key features
- Third-party network cameras supported
- Up to 5 Megapixels resolution recording
- HDMI and VGA output at up to 1920 X 1080P resolution
- 4/8/16-ch network cameras can be connected with 25M/50M/100M incoming bandwidth
- Up to 2 SATA interfaces
- Plug & Play with up to 8 independent PoE network interfaces
- Support network detection, including network delay, packet loss, etc
Main Features
- Video/Audio input:4-ch, 8-ch, 16-ch
- Recording resolution: 5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Power supply:48V DC
- Consumption:10W (without hard disk)
- Working temperature:-10 °C - +55 °C (+14 °F- + 131 °F)
- Dimensions:315 X 230 X 45mm (12.4 ×9.1 X 1.8 inch)
- Weight:1 Kg ( without hard disk)
Rear Panel
- 1 - Power Supply
- 2 - Audio In
- 3 - HDMI Interface
- 4 - LAN Network Interface
- 5 - Audio Out
- 6 - VGA Interface
- 7 - USB Interface
- 8 - Ground
- 9 - Power Switch
- 10 - Network Interfaces with PoE Function
- 11 - Alarm I/O
