Available Model: DS-8008/8012HMFI

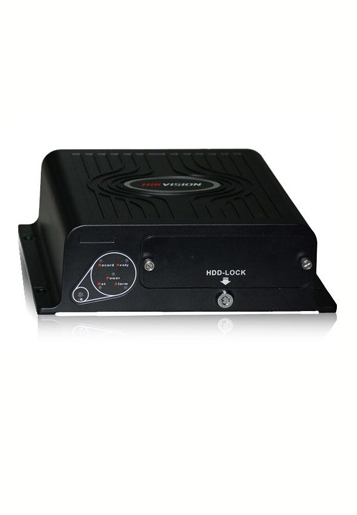

DS-M5504HMI Series Mobile DVR
- Key features
- Physical Interfaces
- Specifications
Key features
- H.264 video compression
- Up to 4CIF resolution recording
- 2X2.5-inch SATA interfaces
- Patented hard disk vibration-proof and bracing technology
- Built-in 3G (WCDMA/cdma2000) module (optional)
- Built-in GPS module
Physical Interfaces:
- 1- CH1, CH2, CH3, CH4: 4-pin aviation plug for audio & video input and
voltage output of channel 1-4.
- 2- Ch5-CH8: DB15-to- aviation plug for audio & video input and voltage output
of channel 5-8.
- 3- OUT: 4-pin aviation plug for video output and audio output and voltage
output.
- 4- RS232: 5-pin aviation plug for RS-232 and voltage output.
- 5- RS422: 10-pin aviation plug for RS-422 and voltage output.
- 6- POWER: 6-pin aviation plug for voltage input and KEY startup interface.
- 7- GPS: GPS antenna.
- 8- 3G (ANT1 ANT2): Wireless network main/aux antenna.
- 9- WIFI (ANT4): WIFI antenna (reserved).
- 10- SIM/SD CARD: SD/SDHC card interface; SIM/UIM card interface.
- 11- USB: USB interface.
- 12- LAN: Network interface.
- 13- ALARM IN (1~3): Alarm input interface.
- 14- SENSOR IN (4~8): Driving status interface. Channel 8 is reserved.
- 15- ALARM OUT (1A 1B 2A 2B): Alarm (relay) output interface.
- 16- Common terminal for alarm input and driving status input.
