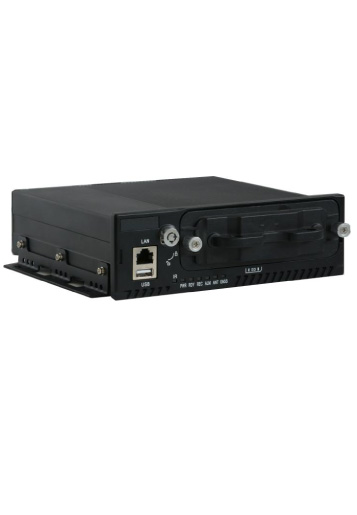

DS-M5504HMI Series Mobile DVR

  • Introduction
  • Main Features
  • Physical Interfaces
  • Specifications

Introduction

Adopting embedded Linux operating system, Hikvision DS-M5500HMI E series dedicated Mobile DVR (Digital Video Recorder) provides powerful monitoring functionalities, including audio and video encoding & decoding. It can both work alone as a recorder and cooperate with other devices to build a comprehensive surveillance system.
Thanks to the features of high stability, easy-to-carry and low power consumption, the DS-M5500HMI E series Mobile DVR is widely applied to the surveillance projects of public transportation, school bus, etc.

Main Features

    • User-friendly GUI providing easy and flexible operations
    • Standard 1DIN dimensions, supporting embedded and bracket installation
    • Pluggable 3G (WCDMA), Wi-Fi (optional), and 2G (optional) module providing flexible data transmission solutions
    • pluggable GNSS (Global Navigation Satellite System) module precisely positioning the vehicle via the satellite and recording the location information in the stream
    • 4 analog channels of audio & video inputs connectable; each channel supporting up to WD1 resolution with H.264 encoding technology
    • one 2.5-inch HDD/SSD and one SD/SDHC card pluggable, adopting hard disk vibration damping technology
    • Information collection interfaces collecting driving information such as left/right turn, braking, backing up, etc.
    • Hard disk box with USB interface supporting intelligent temperature control and data export
    • Specialized aviation connectors ensuring signal stability
    • Delay (0~6h) shutdown and 24-hour scheduled startup/shutdown
    • Wide-range power input (+8VDC ~+36 VDC)
    • Power-off protection avoiding key data from loss
    • Tensile aluminum chassis with no fan design well adaptable to working environment

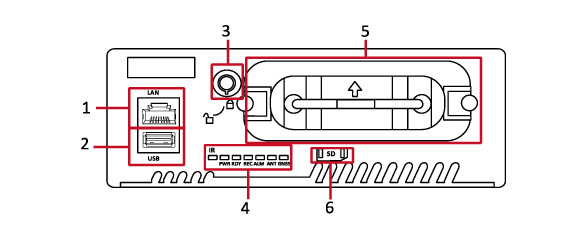

Physical Interfaces:

    • 1- LAN:10M/100M self adaptive Ethernet interface
    • 2- USB:USB Interface
    • 3- Hard disk lock:Lock/Unlock the hard disk box
    • 4- Indicators:IR:Receive IR signal from remote control.
      PWR:Light in green after device startup; light in red when device standby.
      REY:Light in green after device starts up properly.
      REC:Light in green during recording process.
    • 5- SD card slot:Insert one SD card for data storage.

Specifications
