Available Model : DS-2CD2332-I (3MP)

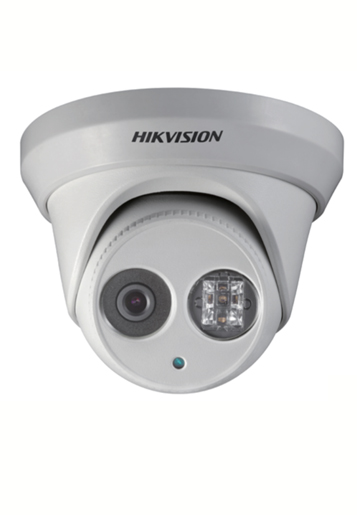

EXIR Turret Network Camera
DS-2CD2312-I (1.3MP)/DS-2CD2332-I (3MP)
- Key Features
- Camera Specification
- General Specification
- Dimension
- Accessories
Key Features
- 1.3MP / 3MP high resolution
- HD real-time video
- 3D DNR & DWDR & BLC
- EXIR illuminator (up to 30m)
- IP66
- PoE
Camera Specification
- Image Sensor :1/3" Progressive Scan CMOS
- Effective Pixels:1280(H)*720(V)
- Min. Illumination:0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
- Shutter Time:1/25(1/30) s to 1/50,000 s
- Lens :4mm@ F2.0 (2.8mm, 6mm, 12mm optional)
- Angle of view: 92.5°(2.8mm), 73.1°(4mm), 46°(6mm), 22°(12mm)
- Lens Mount:M12
- Angle Adjustment:Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
- Day & Night:IR cut filter with auto switch
- Digital noise reduction:3D DNR
- Video compression:H.264 / MJPEG
General Specification
- Working :-40°C - 60°C (-40°F - 140°F)
- Power Supply:12V DC
- Power Consumption:Max. 5.5W(7.5 with ICR on)
- Weather Proof Ratings :IP66
- EXIR Range:Approx. 20 to 30 meters
- Dimension:M127 X 97 (5.0" X 3.8")
- Weight:Net weight: 570g (1.26 lbs)
