Available Model : DS-7208 / 7216HGHI-SH
DS-7204/08/16HGHI-SH-HDTVI -DVR
- Introduction
- Main Features
- Physical Interfaces
- Typical Application
- Specifications
Introduction

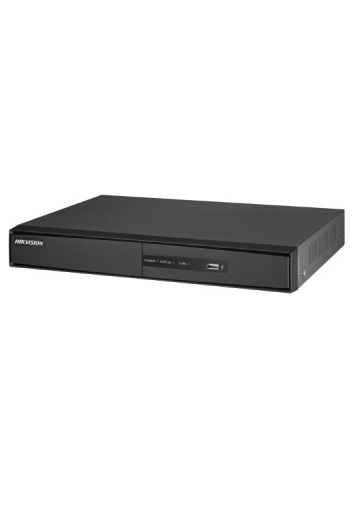

DS-7200HGHI-SH series DVR (Digital Video Recorder) is a new generation recorder developed by Hikvision independently which can connect HD analog cameras and provide powerful surveillance. Combined with multiple advanced technologies, such as audio and video encoding & decoding technology, embedded system technology, storage technology, network technology and intelligent technology. It can both work alone as a recorder and cooperate with other devices to build a comprehensive surveillance system.
The DS-7200HGHI-SH series DVR are widely applied in the areas of finance, public security, military, communication, transportation, education, etc..
Main Features
- Connectable to HD-TVI and analog cameras and IP cameras;
- Connectable to the Coaxitron camera/dome with long transmission distance
- Simultaneous HDMI and VGA outputs at up to 1920x1080P resolution
- New GUI and support starting record with one key;
- Redundant recording and holiday recording;
- Instant playback for assigned camera during multi-channel live view mode;
- Support up to 16-ch synchronous playback at 1080P resolution; and reverse playback for multi-camera;
- Smart playback to go through less effective information;
- Manual video quality diagnostics;
- Customization of tags, searching and playing back by tags
- Locking and unlocking record files
- Support HDD quota management; different capacity can be assigned to different cameras under quota mode;
- Provide 1 SATA interface for HDD with up to 6TB capacity;
- Up to 1 self-adaptive 10M/100M network interface.
- Support Hikvision DDNS (Dynamic Domain Name System);
- Network detection function
General Specification
- 1- VIDEO IN
- 2- AUDIO IN, RCA Connector
- 3- AUDIO OUT, RCA Connector
- 4- VGA Interface
- 5- HDMI Interface
- 6- USB Ports
- 7- LAN Network Interface
- 8- RS-485 Serial Interface
- 9- 12VDC Power Input
- 10- Power Switch
- 11- GND
The rear panel of DS-7108HGHI-E1/DS-7116HGHI-E1 provides 8/16 video input interfaces.
Typical Application
Specifications
