Available Model : DS-2CE56D1T-IR

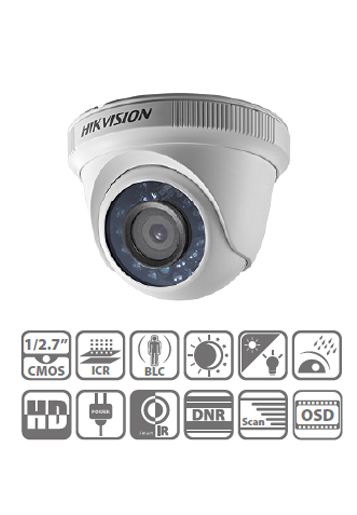

HD1080P Turbo HD Turret Camera
DS-2CE56D1T-IR
- Key Features
- Camera Specification
- General Specification
- Dimension
Key Features
- HD1080P Video Output
- Adopt HDTVI Technology
- True Day/Night, Smart IR
- Up to 20m IR distance
- IP66 weatherproof
- OSD menu controlled via UTC
Camera Specification
- Image Sensor :1 / 2.7" Progressive Scan CMOS
- Effective Pixels:1930(H) X 1088(V)
- Min. Illumination:0.1 Lux @ (F1.2,AGC ON),0 Lux with IR
- Shutter Time:1/25(1/30) s to 1/50,000 s
- Lens :3.6mm (6mm optional)
- Angle of View: 90°(3.6mm), 55.4°(6mm)
- Lens Mount:M14
- Angle Adjustment:Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
- Day & Night:ICR
- Synchronization:Internal synchronization
- Video Frame Rate:1080p@25fps/1080p@30fps
- HD Video Output:1 Analog HD output
General Specification
- Working :-40°C - 60°C (-40°F - 140°F)
- Temperature/Humidity:Humidity 90% or less (non-condensing)
- Power Supply:12V DC
- Power Consumption:Max. 3W
- IR Range:Up to 20m
- Dimension:89.5 X 69.8 mm (φ 3.52" X 2.75")
- Weight :180g
