Available Model : DS-2CE56C2T-IR / IRP

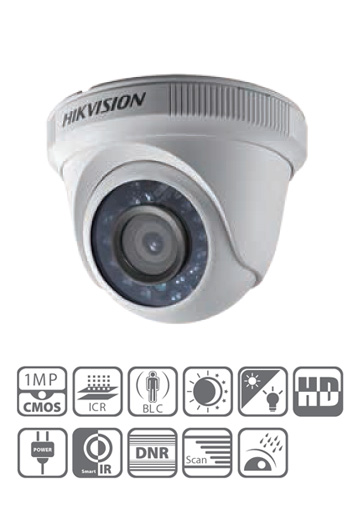

HD720P Turbo HD Turret Camera
DS-2CE56C2T-IR
- Key Features
- Camera Specification
- General Specification
- Dimension
- Accessories
Key Features
- HD720P Video Output
- Adopt HDTVI Technology
- True Day/Night
- DNR, Smart IR
- 20m IR distance
- IP66 weatherproof
Camera Specification
- Image Sensor :1 / 3" Progressive Scan CMOS
- Effective Pixels:1280(H)*720(V)
- Min. Illumination:0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
- Shutter Time:1/25(1/30) s to 1/50,000 s
- Lens :3.6mm (2.8mm, 6mm optional)
- Angle of View: Angle of View: 76.88°(3.6mm), 99.73°(2.8mm), 50.1°(6mm)
- Lens Mount:M12
- Angle Adjustment:Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°
- Day & Night:ICR
- Synchronization:Internal synchronization
- Video Frame Rate:25 fps (PAL) / 30 fps (NTSC)
- HD Video Output:1 Analog HD output
- S / N Ratio:More than 52dB
General Specification
- Working :-40°C - 60°C (-40°F - 140°F)
- Temperature/Humidity:Humidity 90% or less (non-condensing)
- Power Supply:12V DC
- Power Consumption:Max. 3.5W
- Weather Proof Ratings :IP66
- IR Range:Up to 20m
- Dimension:Φ89.5 x 69.8 mm (3.52" x 2.75")
- Weight(approx.):260g (0.57 lb)
