• Available Model : DS-2CD2332-I (3MP)

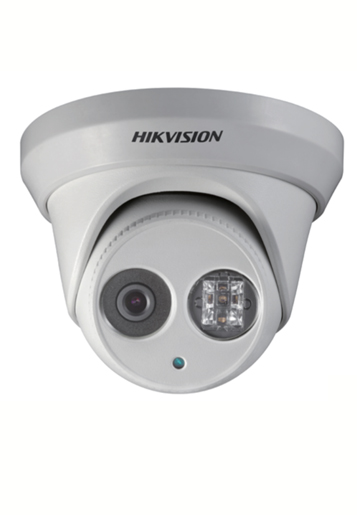

EXIR Turret Network Camera

DS-2CD2312-I (1.3MP)/DS-2CD2332-I (3MP)
  • Key Features
  • Camera Specification
  • General Specification
  • Dimension
  • Accessories

Key Features

  • 1.3MP / 3MP high resolution
  • HD real-time video
  • 3D DNR & DWDR & BLC
  • EXIR illuminator (up to 30m)
  • IP66
  • PoE

Camera Specification

    • Image Sensor :1/3" Progressive Scan CMOS
    • Effective Pixels:1280(H)*720(V)
    • Min. Illumination:0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
    • Shutter Time:1/25(1/30) s to 1/50,000 s
    • Lens :4mm@ F2.0 (2.8mm, 6mm, 12mm optional)
    • Angle of view: 92.5°(2.8mm), 73.1°(4mm), 46°(6mm), 22°(12mm)
    • Lens Mount:M12
    • Angle Adjustment:Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
    • Day & Night:IR cut filter with auto switch
    • Digital noise reduction:3D DNR
    • Video compression:H.264 / MJPEG

General Specification

    • Working :-40°C - 60°C (-40°F - 140°F)
    • Power Supply:12V DC
    • Power Consumption:Max. 5.5W(7.5 with ICR on)
    • Weather Proof Ratings :IP66
    • EXIR Range:Approx. 20 to 30 meters
    • Dimension:M127 X 97 (5.0" X 3.8")
    • Weight:Net weight: 570g (1.26 lbs)

Dimension

Accessories
