HD720P - IR Bullet Camera

DS-2CE56COT-IRP
  • Key Features
  • Camera Specification
  • General Specification
  • Dimension
  • Accessories

Key Features

  • 1 Megapixel high-performance CMOS
  • Turbo HD output, up to 720P resolution
  • True Day/Night
  • DNR, Smart IR
  • Up to 20m IR distance
  • IP66 weatherproof

Camera Specification

    • Image Sensor :1MP CMOS Images Sensor
    • Effective Pixels:1296(H)*732(V)
    • Min. Illumination:0.01 Lux @(F1.2,AGC ON),0 Lux with IR
    • Shutter Time:1/25(1/30) s to 1/50,000 s
    • Lens :2.8mm, 3.6mm and 6mm optional
    • Angle of View: 70.9°(3.6mm), 92°(2.8mm), 56.7°(6mm)
    • Lens Mount:M12
    • Day & Night:ICR
    • Angle Adjustment:Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°
    • Synchronization:Internal synchronization
    • Video Frame Rate:720p@25fps/720p@30fps
    • HD Video Output:1 Analog HD output
    • S/N Ratio: 62dB

General Specification

    • Working :-40°C - 60°C (-40°F - 140°F), Humidity 90% or less (non-condensing)
    • Power Supply:12V DC
    • Power Consumption:Max. 4W
    • Protection Level: IP66
    • IR Range:Up to 20m
    • Dimension:70 x 149.5mm (2.76" x 5.89")
    • Weight:Net weight: 300 g

Dimension

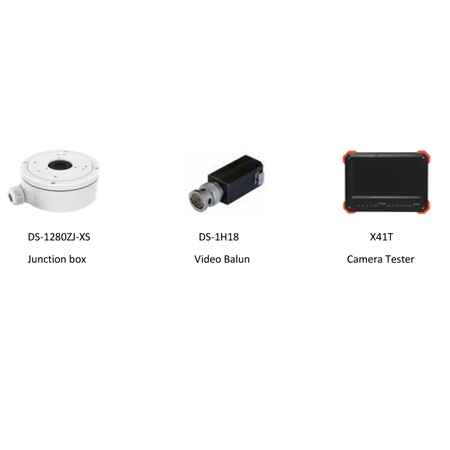

Accessories
